Tputty™ 607 is a high thermally conductive single part dispensable material designed with automation and vertical stability in mind. Laird has leveraged its knowledge of thermally conductive fillers and resin systems to develop a single part dispensable that demonstrates reliability in a variety of application orientations.

Tputty™ 607 is ideal for applications that can benefit from automation and allows minimization of SKUs in applications with gap variability. In addition to providing application flexibility and variable gap adaptation, Tputty™ 607 will exert minimal stress on your component while maintaining interface contact to maximize thermal transfer. Combined with Laird’s global technical support and global footprint, deploying Tputty™ 607 is easier than ever.

When it is time to integrate TputtyTM 607 into your production environment, Laird can work with your existing dispensing partner or provide recommendations for a dispensing equipment provider.

FEATURES AND BENEFITS

• RoHS Compliant

• Complete Dispensing Solution Options Available

• 6.4 W/mK

• Demonstrated thermal cycling stability

• Low outgassing per ASTM E595

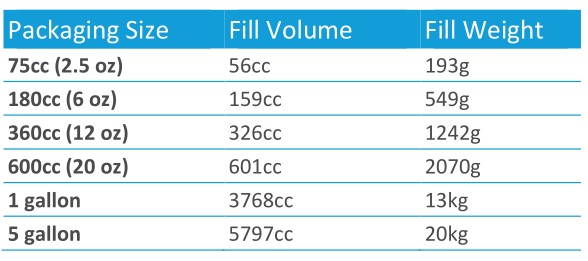

• Available in cartridges (75cc, 180cc, 360cc, 600cc) and pails (1 gallon and 5 gallon)
